RGB 7" Wide Temperature LCD 50 Pins 800x480 Display 250 Nits Brightness

Brand Name : INNOLUX

Model Number : AT070TN92

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pcs

Price : USD10.5

Payment Terms : T/T

Supply Ability : 5000pcs

Delivery Time : 5-8 work days

Packaging Details : 50pcs/box Original Package

Outline Dimension : 164.9(W)×100.0(H)×5.7(D)mm

Active Area : 154.08(W)×85.92(H)mm

Dot pitch : 0.0642(W)×0.1790(H)mm

Number of Pixels : 800 × 3(RGB) × 480

Viewing Angle : 70/70/50/70

Product Type : Tft Screen

Contact Now

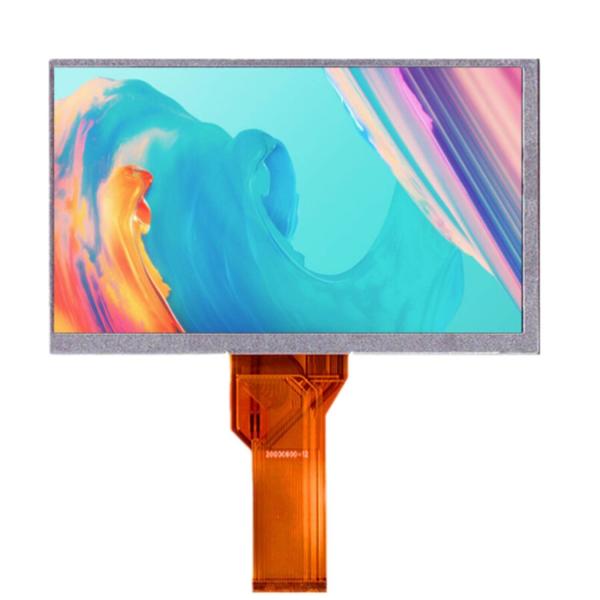

7 Inch 800x480 Tft Screen With RGB Interface 50 Pins 250 Nits Brightness

General Description:

AT070TN92 is 7 inch lcd with 6-bit / 6-bit + Dithering grayscale signal for each pixel, this product can display 262K / 16.7M colors and its display color saturation reaches 50% (NTSC). The backlight is a 3S9P WLED light-emitting side-entry light source with 20K hours of life without backlight driver.

Specifications:

No. Item Specification
1 LCD size 7.0 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 800 × 3(RGB) × 480
4 Display mode Normally White, Transmissive
5 Dot pitch 0.0642(W)×0.1790(H) mm
6 Active area 154.08(W)×85.92(H) mm
7 Module size 164.9(W) ×100.0(H) ×5.7(D) mm
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Interface Digital
11 Backlight power consumption 1.674W (Typ.)
12 Panel power consumption 0.226W (Typ.)
13 Weight 150g (Typ.)
14

Source-IC

Gate-IC

NT39419BH

NT52001H
15 Driving methods 1+2 dot

Absolute Maximum Ratings:

Item

Symbol

 Values

Unit
Min. Max.

Power voltage

 DVDD -0.3 5.0 V
AVDD 6.5 13.5 V
VGH -0.3 40.0 V
VGL -20.0 0.3 V
VGH-VGL 20 40.0 V
Operation Temperature TOP -20 70 ℃
Storage Temperature TST -30 80 ℃
LED Reverse Voltage VR 1.2 V
LED Forward Current IF 25 mA

Electrical Specifications:

Item

Symbol

 Values

Unit
Min. Typ. Max.

Power voltage

 DVDD 3.0 3.3 3.6 V
AVDD 10.2 10.4 10.6 V
VGH 15.3 16.0 16.7 V
VGL -7.7 -7.0 -6.3 V
Input signal voltage VCOM 2.6 (3.6) 4.6 V
Input logic high voltage VIH 0.7 DVDD 0.9 DVDD DVDD V
Input logic low voltage VIL 0 0.1 DVDD 0.3 DVDD V

Handling Precautions:

1.Do not wipe the polarizer with dry cloth. It might cause scratch.

2.Only use a soft sloth with IPA to wipe the polarizer, other chemicals might permanent damage to the polarizer.


Product Tags:

RGB Wide Temperature LCD
